Application:
Wrinkle removal
Body shaping
Body circumference reduction
Cellulite reduction
Skin tightening
Skin surface smooth
Massage
Eyelid area treatment
Body slimming
Skin lifting
THEORY & APPLICATION

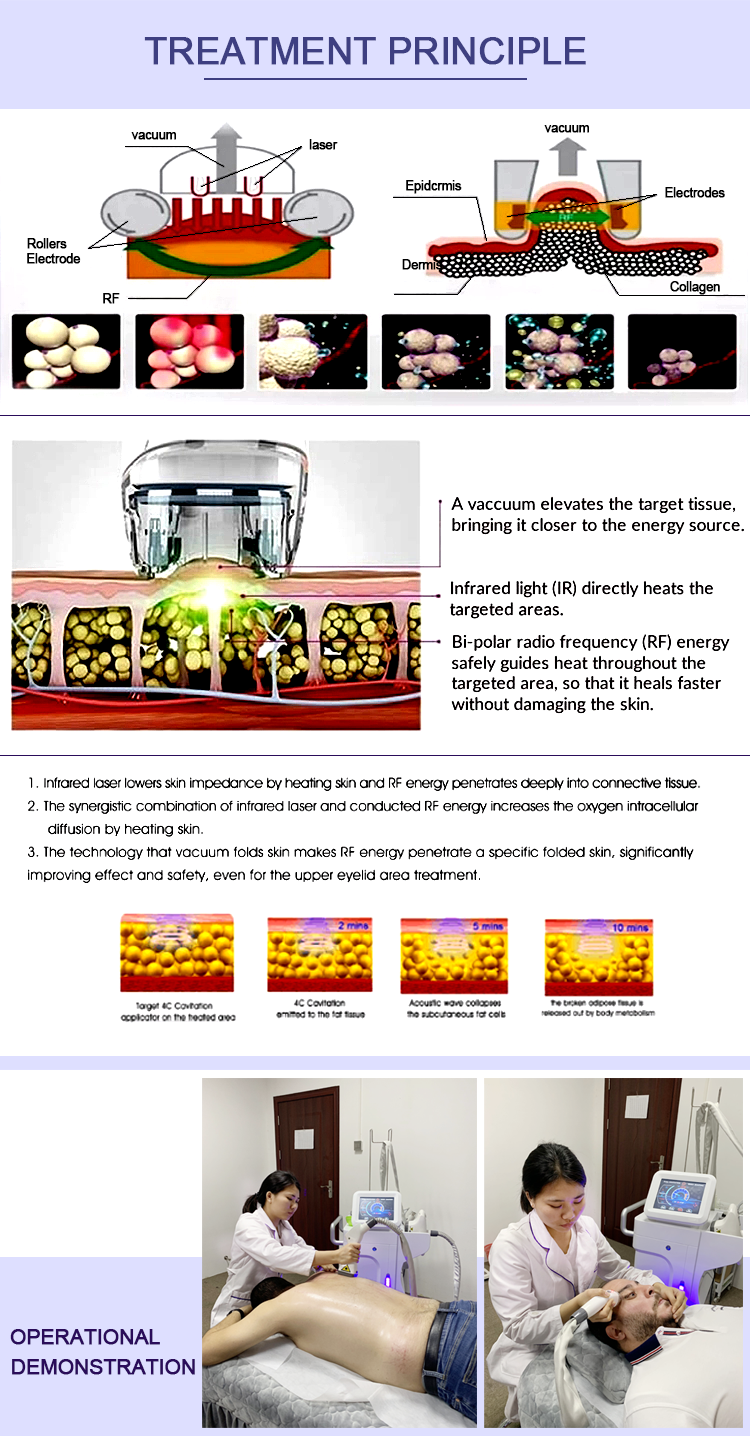

Infrared RF Vacuum Roller technology combines infrared light, bi-polar radio frequency energy and vacuum, which cause deep heating of the fat cells, their surrounding connective tissue and the underlying dermal collagen fibers. This type of efficient heating and vacuum stimulates the growth of new and better collagen and elastin which results in localized reduction in skin laxity, body volume, and an overall improvement in skin structure and texture.
Scope of Treatment: Body Contouring ; Cellulite Removal ; Body Slimming ; Circumference Reduction ; Skin tightening ; Face Lifting ; Wrinkle removal ; Skin Texture & Tone.
4 Technologies in one machine - Vaccum + 940nm Near-Infrard Laser + Bipolar RF + Rollers
1).Infrared laser reduces skin impedance by heating skin and RF energy penetrates deeply into connective tissue to increase the oxygen intracellular diffusion by heating skin.
2).Vacuum plus specially designed rollers manipulate leads RF penetration to be even 5-15mm. Nip and stretch fibrillar connective tissue greatly improvs body contouring effect.
3).The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, greatly improve effect and safety, even for the upper eyelid area treatment.
Application:
Wrinkle removal
Body shaping
Body circumference reduction
Cellulite reduction
Skin tightening
Skin surface smooth
Massage
Eyelid area treatment
Body slimming
Skin lifting

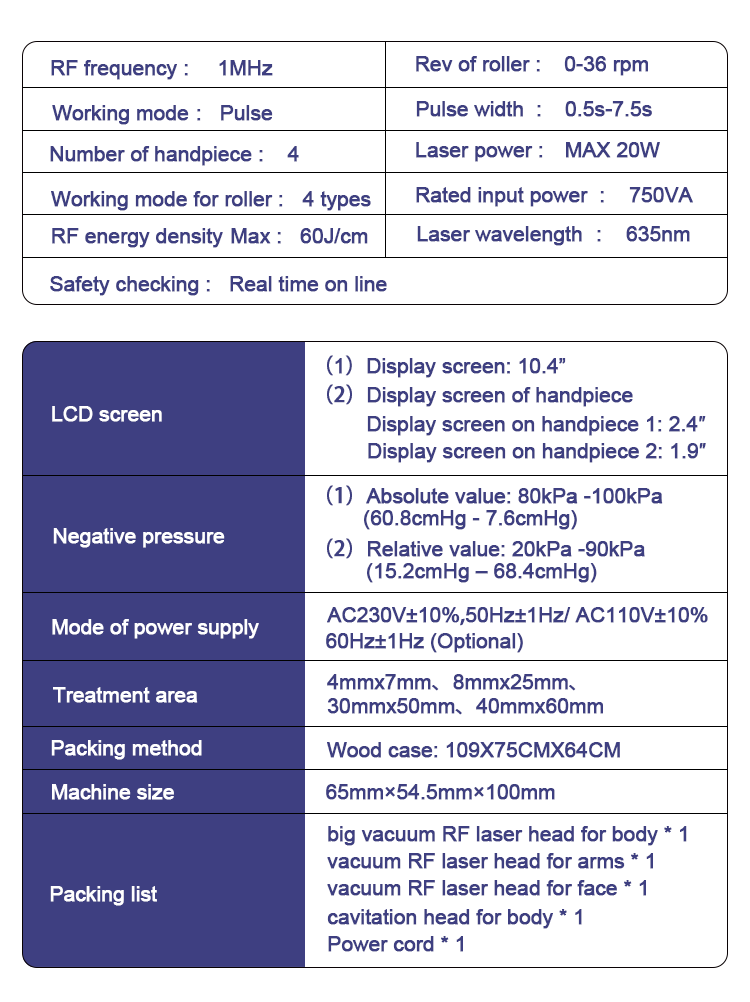

SPECIFICATIONS
Items | Specifications |

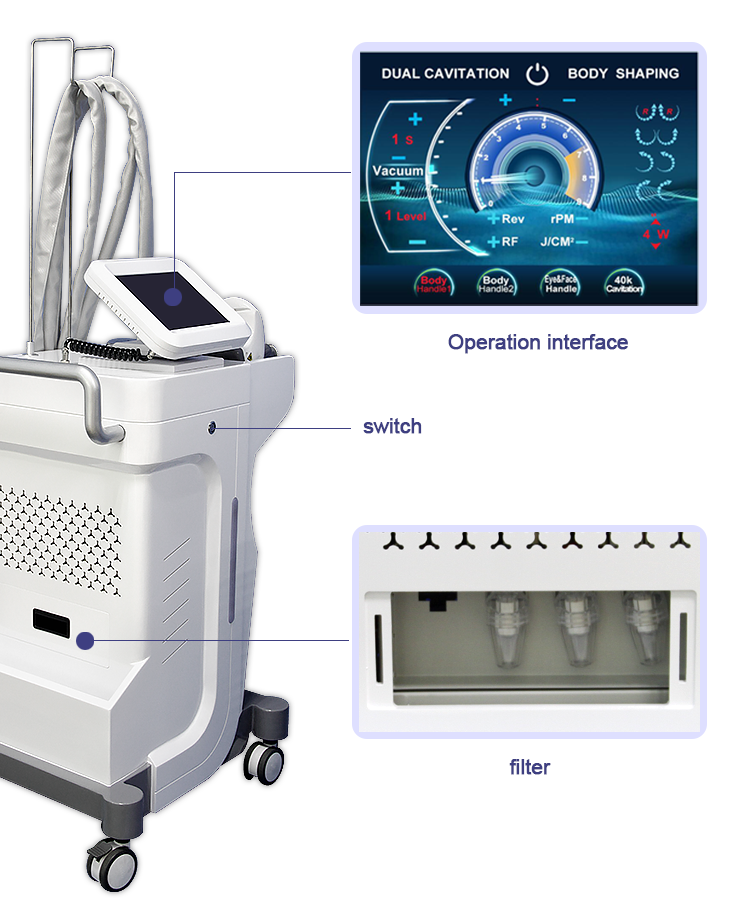

LCD screen | 1) Display screen: 10.4” 2) Display screen of handpiece Display screen on handpiece 1: 2.4″ Display screen on handpiece 2: 1.9″ |
Working mode | Pulse |
Pulse width | 0.5s-7.5s |
Negative pressure | 1) Absolute value: 80kPa -10kPa (60.8cmHg - 7.6cmHg) 2) Relative value: 20kPa -90kPa (15.2cmHg – 68.4cmHg) |
Rev of roller | 0-36 rpm |
Working mode for roller | 4 types |
Safety checking | Real time on line |
RF frequency | 1MHz |
RF energy density | Max: 60J/cm |
Laser wavelength | 940nm |
Laser power | MAX 20W |

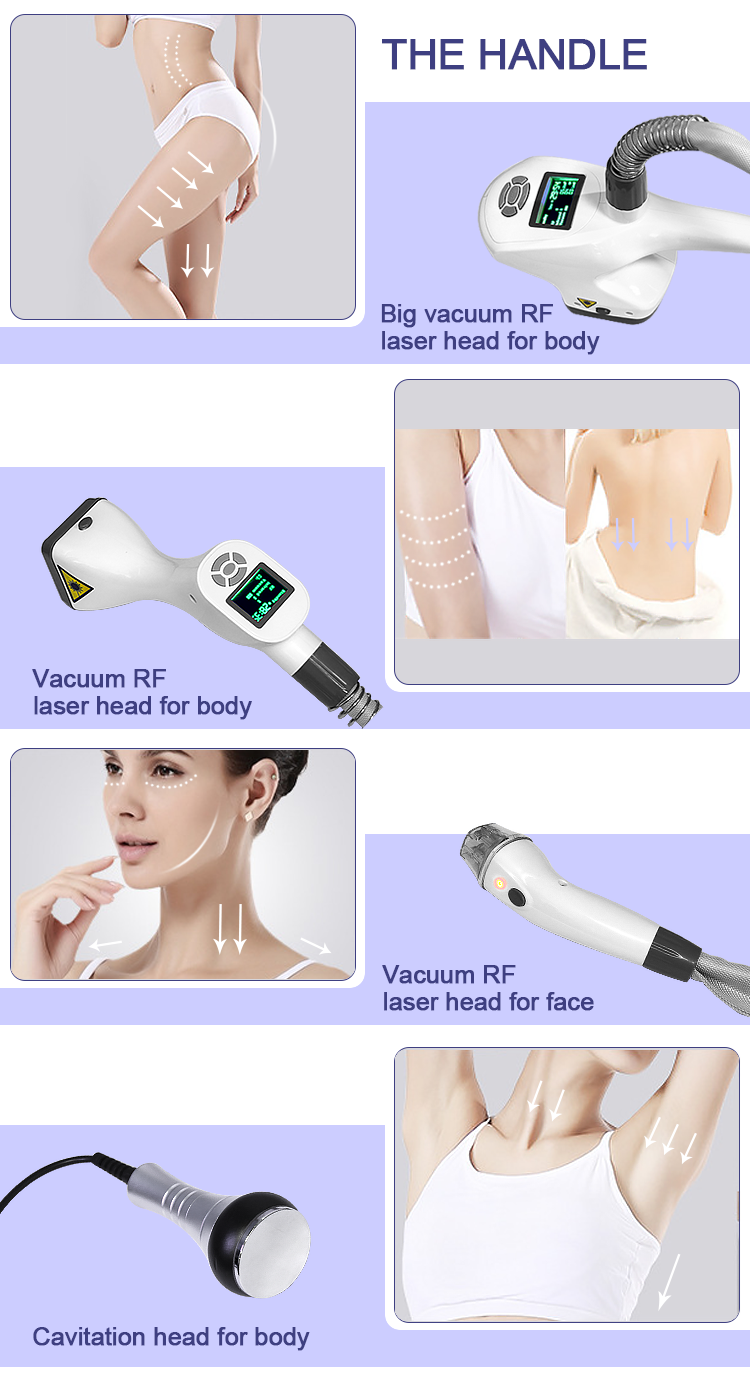

Number of handpiece | 4 |
Treatment area | 4mmx7mm、8mmx25mm、30mmx50mm、40mmx60mm |
Rated input power | 750VA |
Mode of power supply | AC230V±10%,50Hz±1Hz/ AC110V±10%,60Hz±1Hz (Optional) |
Machine size | 65mm×54.5mm×100mm |
Packing method | Wood case: 109X74CMX63CM |

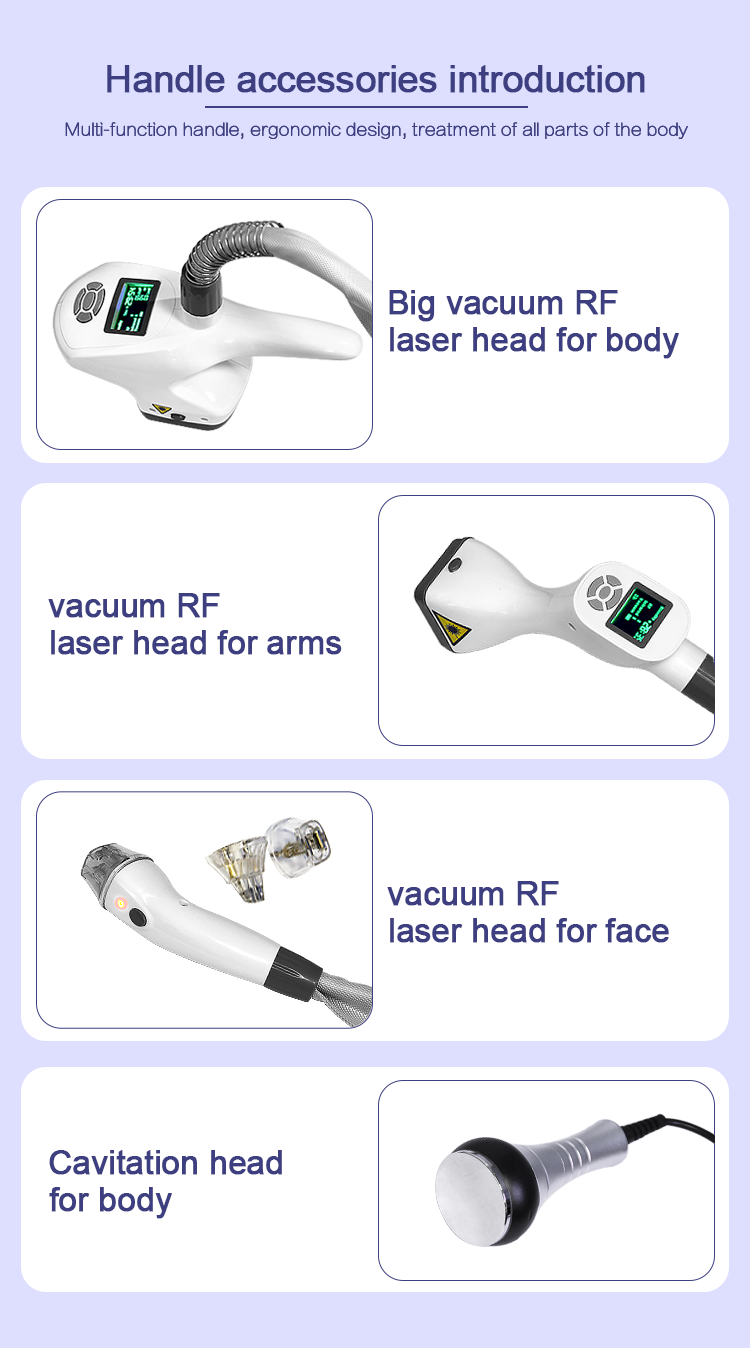

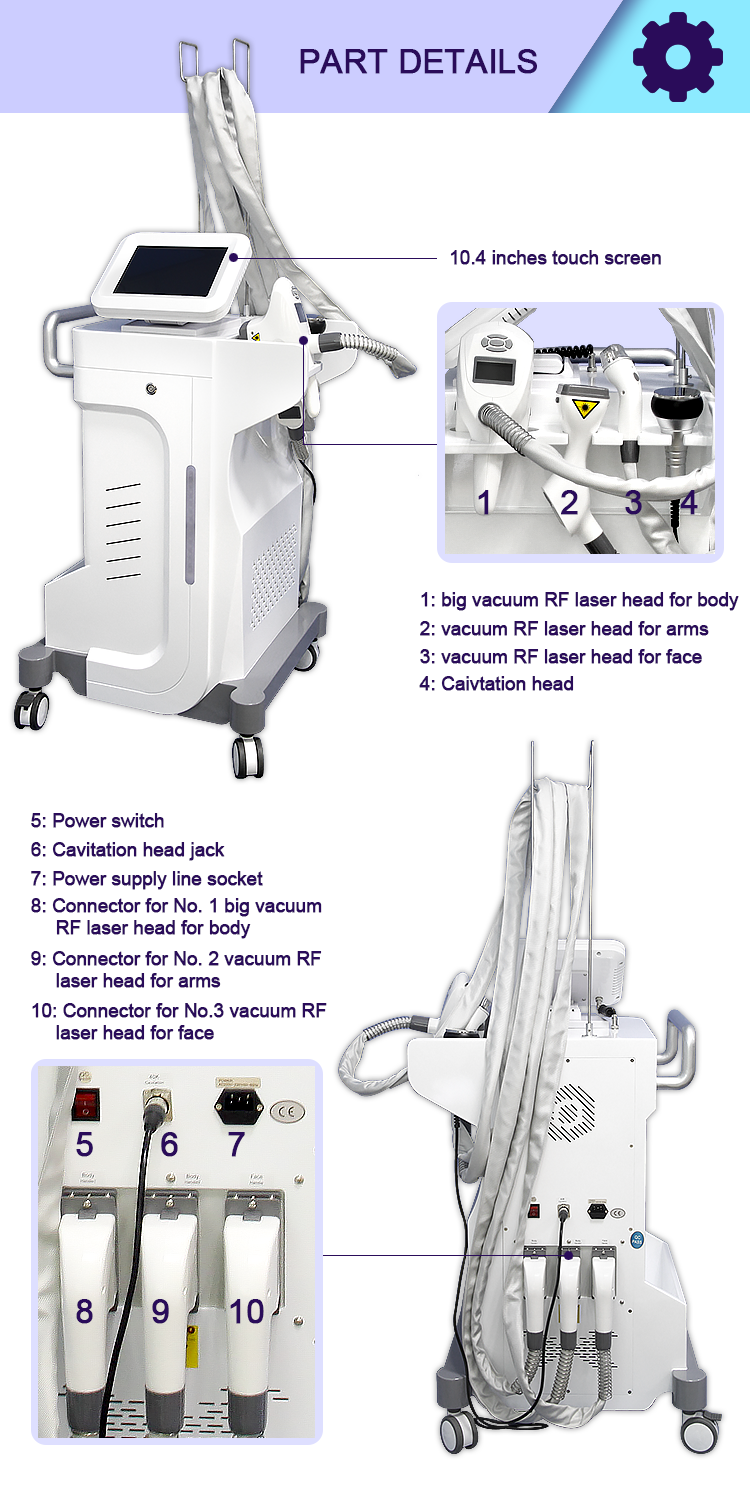

Packing list | No. 1 big vacuum RF laser head for body * 1 No. 2 vacuum RF laser head for arms * 1 No. 3 vacuum RF laser head for face * 1 No. 4 cavitation head for body * 1 Power cord * 1 Clothes for treatment * 2 |
