Acne Treatment, Pore Remover, Skin Rejuvenation, Skin Tightening, Wrinkle Remover, Whitening, compound nevus and intradermal nevus, etc.
Application
1. For Skin
---Pigmentation removal, wrinkles removal, skin resurfacing, skin rejuvenation, skin tightening and whitening.
---Smooth various scars, acne scars, burnt scars, surgical scar, freckle,and other spots formed by hyperchromic pathological changes and so on.
---Cutting blepharoplasty, skin tags and ingrown nails, compound nevus and intradermal nevus, etc.
2.For Gynecology Application:
--- Vaginal tightening, vaginal whitening, vaginal color dark treatment, etc.
--- Clean the vagina, moist vagina, improve secretion, etc.
--- Urinary incontinence treatment.

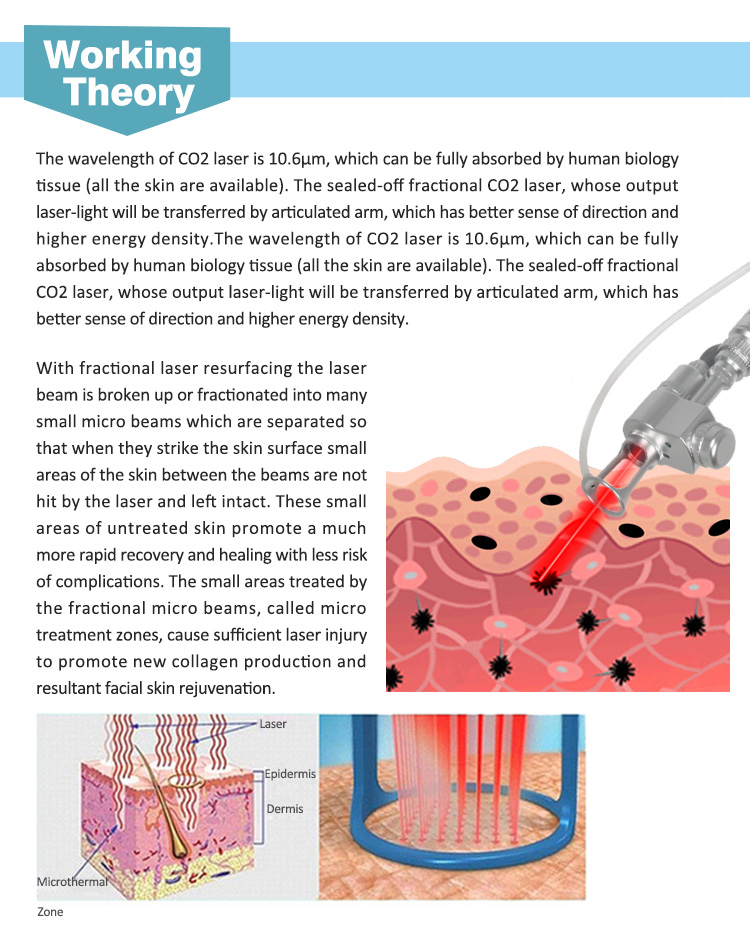

1. Working Theory

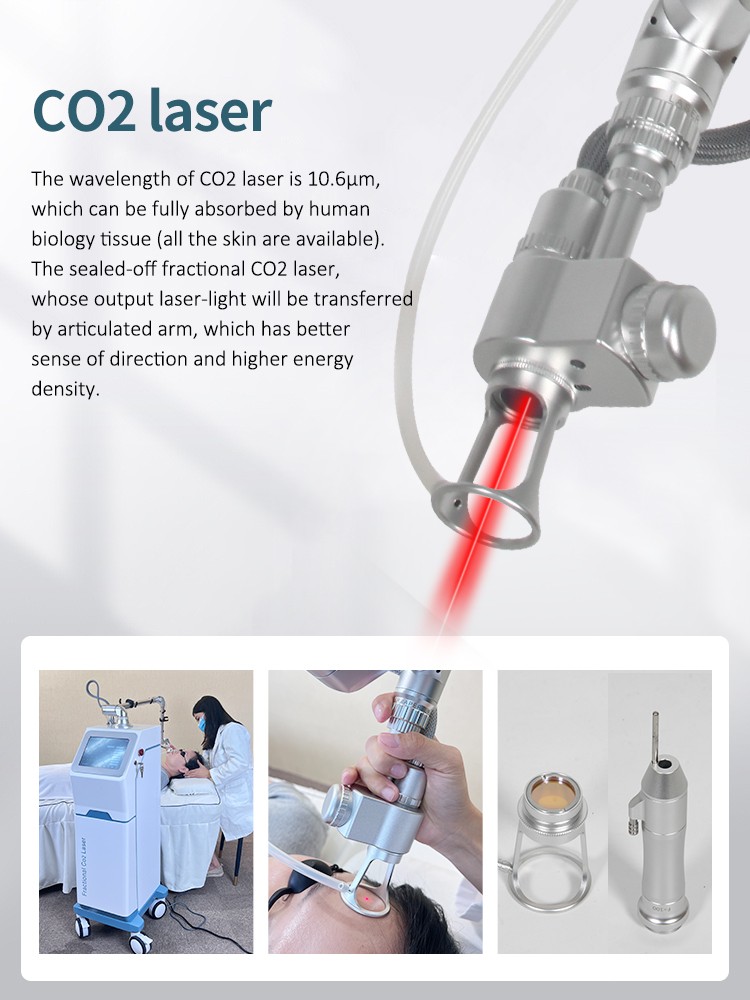

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin are available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.
With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
2. Application
(1) Remove acne and acne marks;
(2) Eliminate dry pattern, fishtail, etc around the eyes;
(3) anti-aging: skin firming, wrinkle removal, improve the skin condition;
(4) Treatment of pigmentary lesions such as freckles and ostrum miracles;
(5) Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar;
(6) Stretch marks.

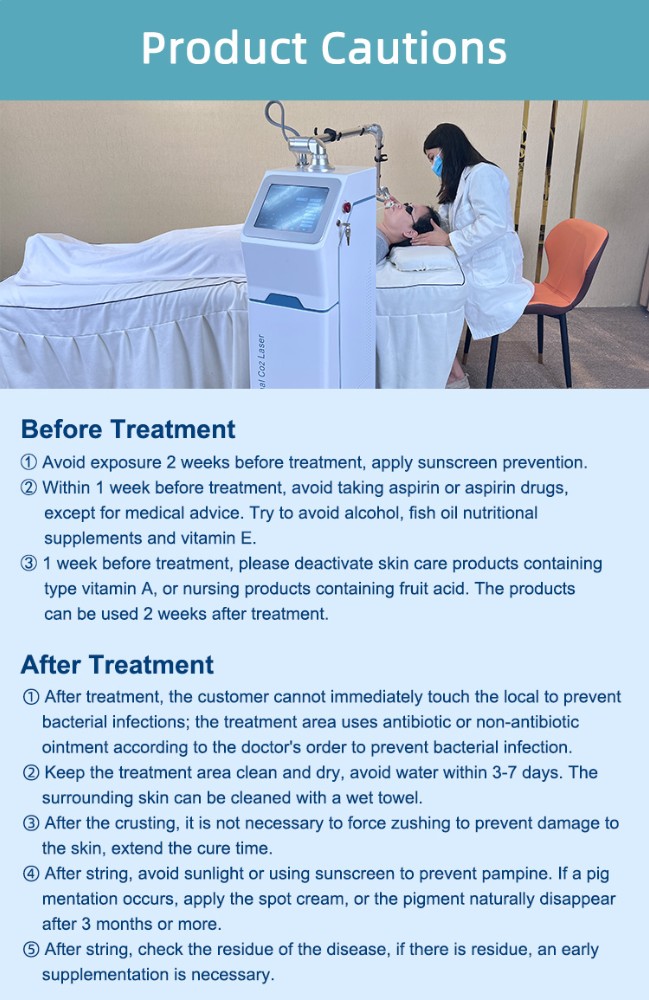

5. Cautions
(1) Before Treatment
① Avoid exposure 2 weeks before treatment, apply sunscreen prevention.
② Within 1 week before treatment, avoid taking aspirin or aspirin drugs, except for medical advice. Try to avoid alcohol, fish oil nutritional supplements and vitamin E.
③ 1 week before treatment, please deactivate skin care products containing type vitamin A, or nursing products containing fruit acid. The products can be used 2 weeks after treatment.
(2) After Treatment
① After treatment, the customer cannot immediately touch the local to prevent bacterial infections; the treatment area uses antibiotic or non-antibiotic ointment according to the doctor's order to prevent bacterial infection.
② Keep the treatment area clean and dry, avoid water within 3-7 days. The surrounding skin can be cleaned with a wet towel.
③ After the crusting, it is not necessary to force zushing to prevent damage to the skin, extend the cure time.
④ After string, avoid sunlight or using sunscreen to prevent pampine. If a pigmentation occurs, apply the spot cream, or the pigment naturally disappear after 3 months or more.
⑤ After string, check the residue of the disease, if there is residue, an early supplementation is necessary.
6. Contraindications
(1) scar body;
(2) Severe diabetes, hypertensive patients;
(3) Treatment zone has suspicious villain;
(4) Vitiligo and psoria, systemic lupus erythematosus;
(5) Pregnancy or lactation;
(6) Light allergy;
(7) Chemical peeling and removal, grinding and other transconductors;
(8) Use dimromic acidists;
(9) Cardiopulmonary function is poor, and it is important organic lesions.
7. Product Maintenance
(1) Warranty: The warranty date of the host is 1 years from the date of purchasing, and the handles
warranty is 6 months. We are responsible for the maintenance in our factory in GZ. When the warranty date is expired, we will charge the service fee or the cost of the component.
(2) Medical equipment or household appliances near the equipment may have operational failures due to interference.
(3) Prohibited to use in the following environments:
Hot and humid environment;
Dusty environment;
Environment with much smoke or stream.
(4) If there comes a failure, shut down the power immediately, and send it to the distributors or contact manufacturer for maintenance, Do not repair by yourself without guidance.
(5) The cooling liquid is pure water, and it is necessary to clean up when the machine is transported or not used for a long time.
(6) After treatment, turn off the power, ensure that the power line is unplugged.
(7) Exclusion of liability:
failure caused by unauthorized disassembly and modification;
failure caused by accidental falling;
failure caused by lack of reasonable maintenance;
failure caused by incorrect usage.

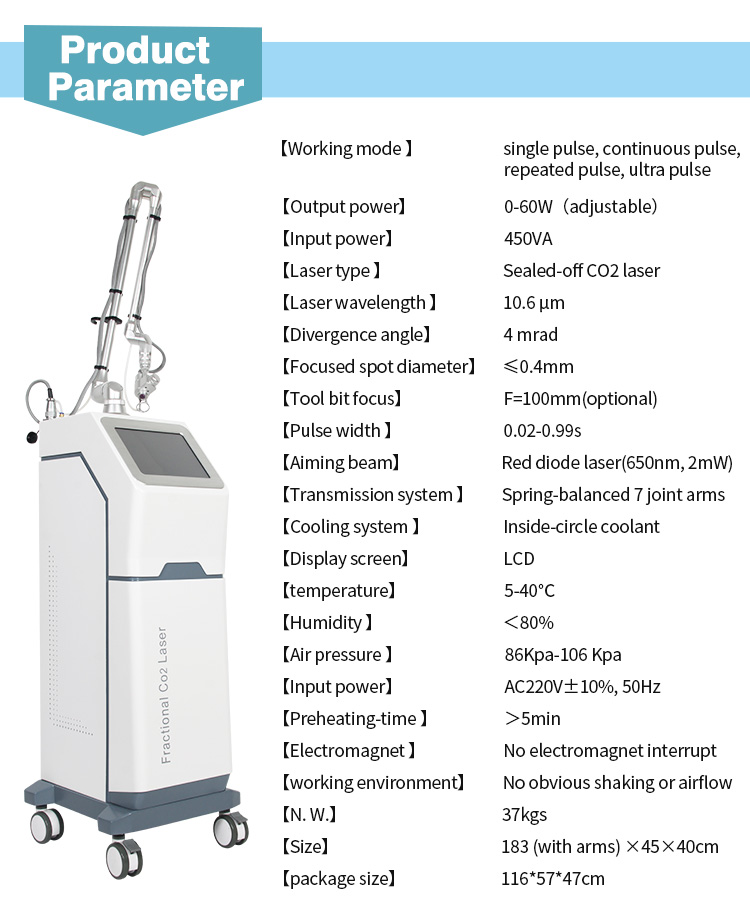

8. Parameters
Working mode | single pulse, continuous pulse, repeated pulse, ultra pulse |
Output power | 0-60W(adjustable) |
Input power | 450VA |
Laser type | Sealed-off CO2 laser |
Laser wavelength | 10.6μm |
Divergence angle | 4mrad |
Focused spot diameter | ≤0.4mm |
Tool bit focus | F=100mm(optional) |
Pulse width | 0.02-0.99s |
Aiming beam | Red diode laser(650nm, 2mW) |
Transmission system | Spring-balanced 7 joint arms |
Cooling system | Inside-circle coolant |

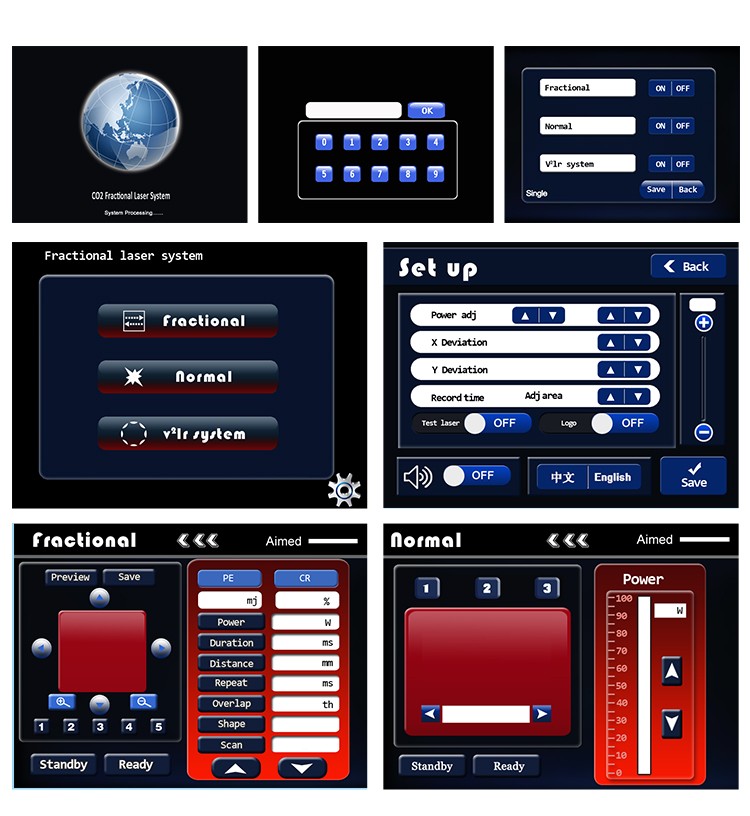

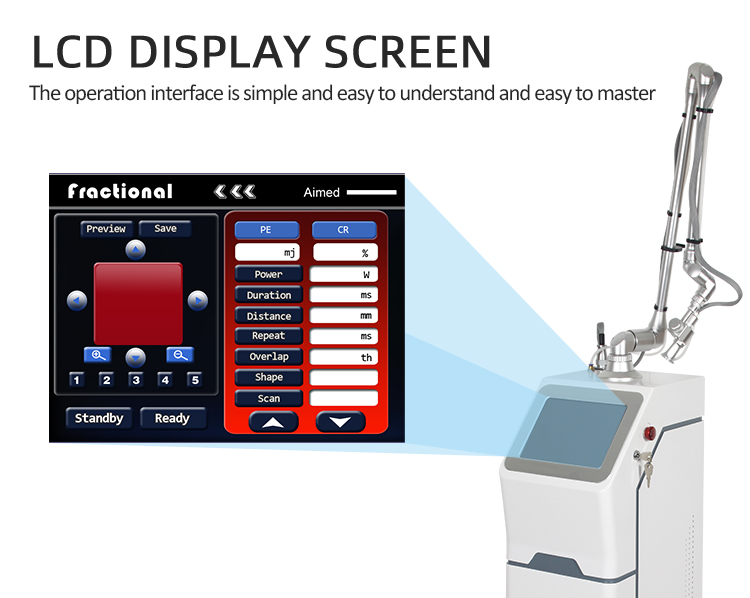

Display screen | LCD |
Working environment temperature | 5-40℃ |
Humidity | <80% |
Air pressure | 86Kpa-106 Kpa |
Input power | AC220V±10%, 50Hz |
Preheating-time | >5min |
Electromagnet | No electromagnet interrupt |
other working environment | No obvious shaking or airflow |
N. W. | 37kgs |
Size | 183 (with arms) ×45×40cm |
